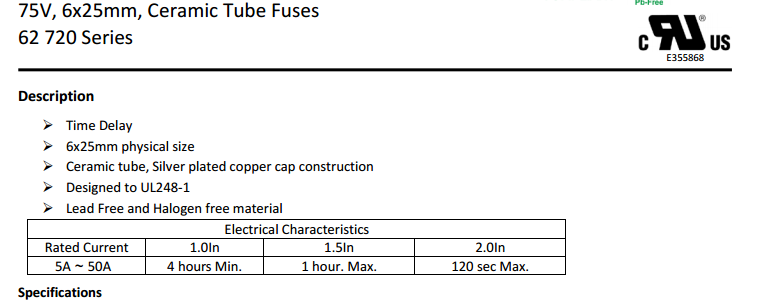

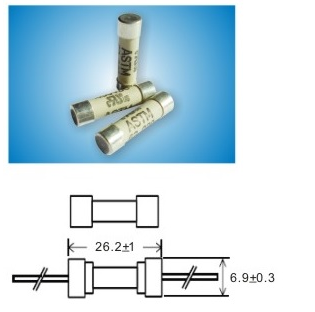

75Vdc Telecom fuse, provide protection for telecom power supply, both for cable and short circuit protection, with 6x25mm compact body size.
Replace Conquer(Taiwan) AXT series, Littelfuse 0688030MXEP(LF 688) and Bussmann TCP70 Series.
75V直流通信保护熔断器(保险丝), 为通信电源(DCDU直流分配单元)提供线缆保护和短路保护.
紧凑的6x25mm尺寸提供了高达2500A的分断能力.
可直接替代台湾功得的AXT系列, 力特(LF)的688系列和Bussmann的TCP70系列.

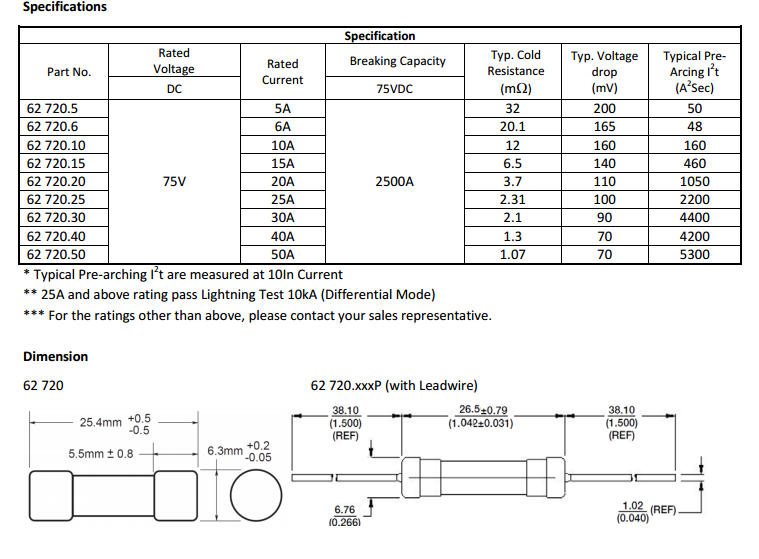

VOLTAGE RATING: 75V DC
AMPERE RANGE: 1A ~ 50A
INTERRUPTING RATING: 2500A@75Vdc
Note: 30A withstand 8/20us 15kA lightning test. For other rating/surge, please contact us.
